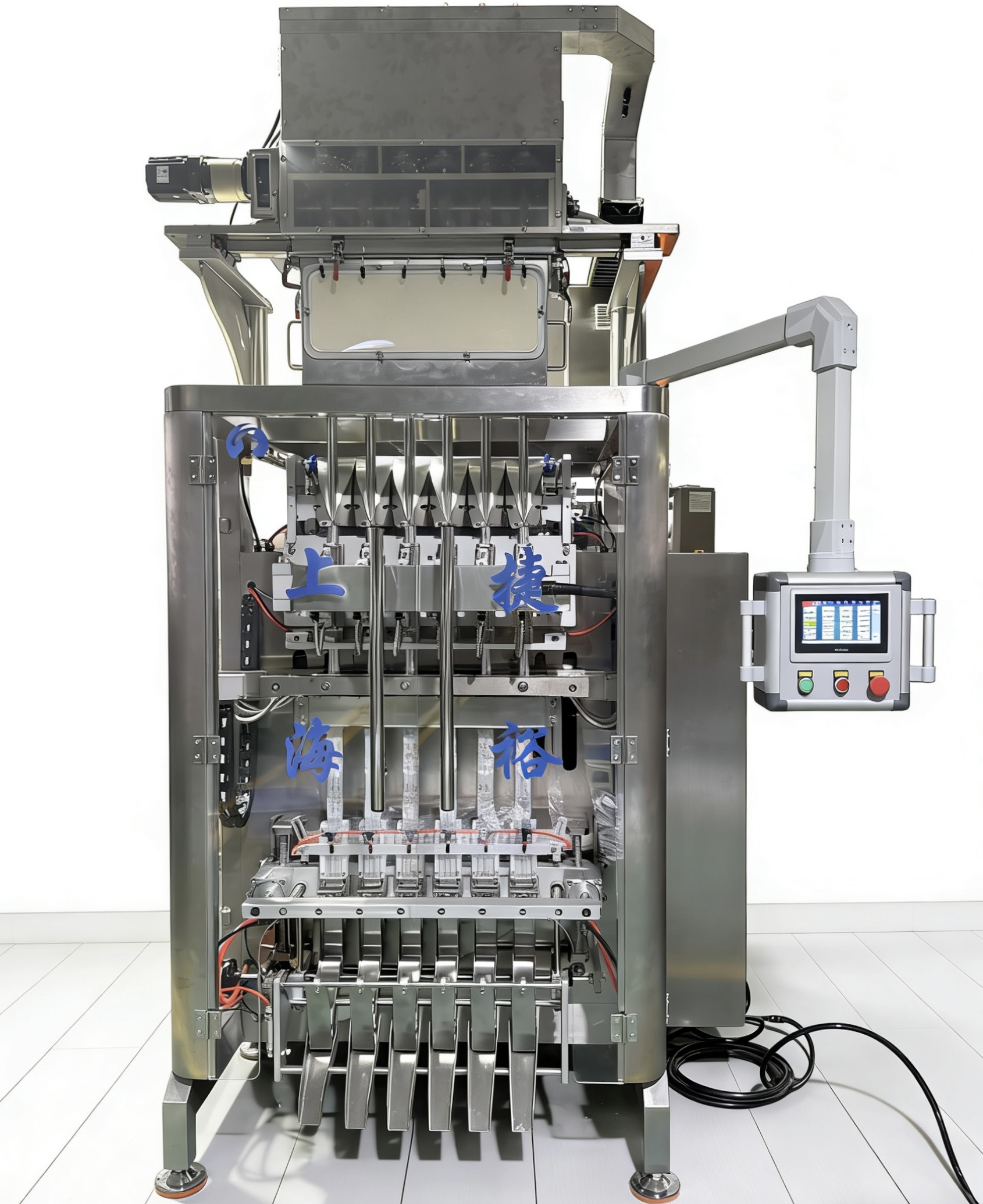

Multi-column strip packaging machine


Technical Features:
1. Simple  structure,reliable and stable performance of the whole machine, simple operation and maintenance, Replacing product specifications is simple.
2.Adopt Japan's Mitsubishi PLC hardware to ensure the operation of the machine.
3.The overall performance of the machine is strong,and it can work more than 20 hours a day.
4.The PLC program is written by our seniorengineers who have been in the industry formore than 10 years.
5.The measuring cup system used is developed by our company.
6.The servo motoradopts the Japanese Panasonic brand.
7.The touch screen operation is simple and intuitive.
8.Important electronic components are imported brands.
9.Intelligent photoelectric tracking,accurate bag positioning.
10.Fully automatic completion of feeding, bag making, The whole process of sealing and product outputis completed at onetime.
11.The  packing speed can besetfreely.
12.This machine  meets the national GMP requirements.

Technical Features:
1. Simple  structure,reliable and stable performance of the whole machine, simple operation and maintenance, Replacing product specifications is simple.
2.Adopt Japan's Mitsubishi PLC hardware to ensure the operation of the machine.
3.The overall performance of the machine is strong,and it can work more than 20 hours a day.
4.The PLC program is written by our seniorengineers who have been in the industry formore than 10 years.
5.The measuring cup system used is developed by our company.
6.The servo motoradopts the Japanese Panasonic brand.
7.The touch screen operation is simple and intuitive.
8.Important electronic components are imported brands.
9.Intelligent photoelectric tracking,accurate bag positioning.
10.Fully automatic completion of feeding, bag making, The whole process of sealing and product outputis completed at onetime.
11.The  packing speed can besetfreely.
12.This machine  meets the national GMP requirements.


Previous: No more data

Product Details

Scope of application:
medicine, food, chemical industry, cosmetics, desiccant and other Industries Small bag packaging of powder, granule, liquid, paste and other materials



Main technical parameters:

Baglength

50-200mm(L)

Bagwidth

4 columns of 20-50mm, 6 columns of 20-50mm, 8 columns of 20-35mm, 10 columns of 20-30mm(customizable)

Maximum width offilm

880mm(customizable)

Packingspeed

20-40 bag/min/lane

Measurement range

0.5--30g

Air pressure

0.6mpa

Airconsumption

0.8m3/min

Voltage

AC380V/50HZ

Power

6.5KW

Dimensions

(L)1680mm×(w)1300mm×(H)3000mm

Machine weight

800kg

Scope of application:
medicine, food, chemical industry, cosmetics, desiccant and other Industries Small bag packaging of powder, granule, liquid, paste and other materials



Main technical parameters:

Baglength

50-200mm(L)

Bagwidth

4 columns of 20-50mm, 6 columns of 20-50mm, 8 columns of 20-35mm, 10 columns of 20-30mm(customizable)

Maximum width offilm

880mm(customizable)

Packingspeed

20-40 bag/min/lane

Measurement range

0.5--30g

Air pressure

0.6mpa

Airconsumption

0.8m3/min

Voltage

AC380V/50HZ

Power

6.5KW

Dimensions

(L)1680mm×(w)1300mm×(H)3000mm

Machine weight

800kg
