Liquid vertical packaging machine

Technical Features:
1. Servomotor control baglength, baglength is stable, accurate positioning.
2. Adopt PID temperature  controller, temperature control is more accurate.
3. Modular heating, more accurate temperature control, heating  failure can alarm.
4. Advanced design concept, reduce the loss of packaging material, ensure the stability of equipment operation, prolong the operation life of equipment.
5. Simple and convenient operation, using advanced PLC+POD(touch  screen) electrical control system, friendly man-machine interface.
6. All parts of the accessible materials are MADE of SUS304 stainless steel to ensure the health and reliability of the products.

Technical Features:
1. Servomotor control baglength, baglength is stable, accurate positioning.
2. Adopt PID temperature  controller, temperature control is more accurate.
3. Modular heating, more accurate temperature control, heating  failure can alarm.
4. Advanced design concept, reduce the loss of packaging material, ensure the stability of equipment operation, prolong the operation life of equipment.
5. Simple and convenient operation, using advanced PLC+POD(touch  screen) electrical control system, friendly man-machine interface.
6. All parts of the accessible materials are MADE of SUS304 stainless steel to ensure the health and reliability of the products.

Product Details

Scope of application:
It is suitable forautomatic packaging of granules, liquids, powders, sauces and othermaterials.

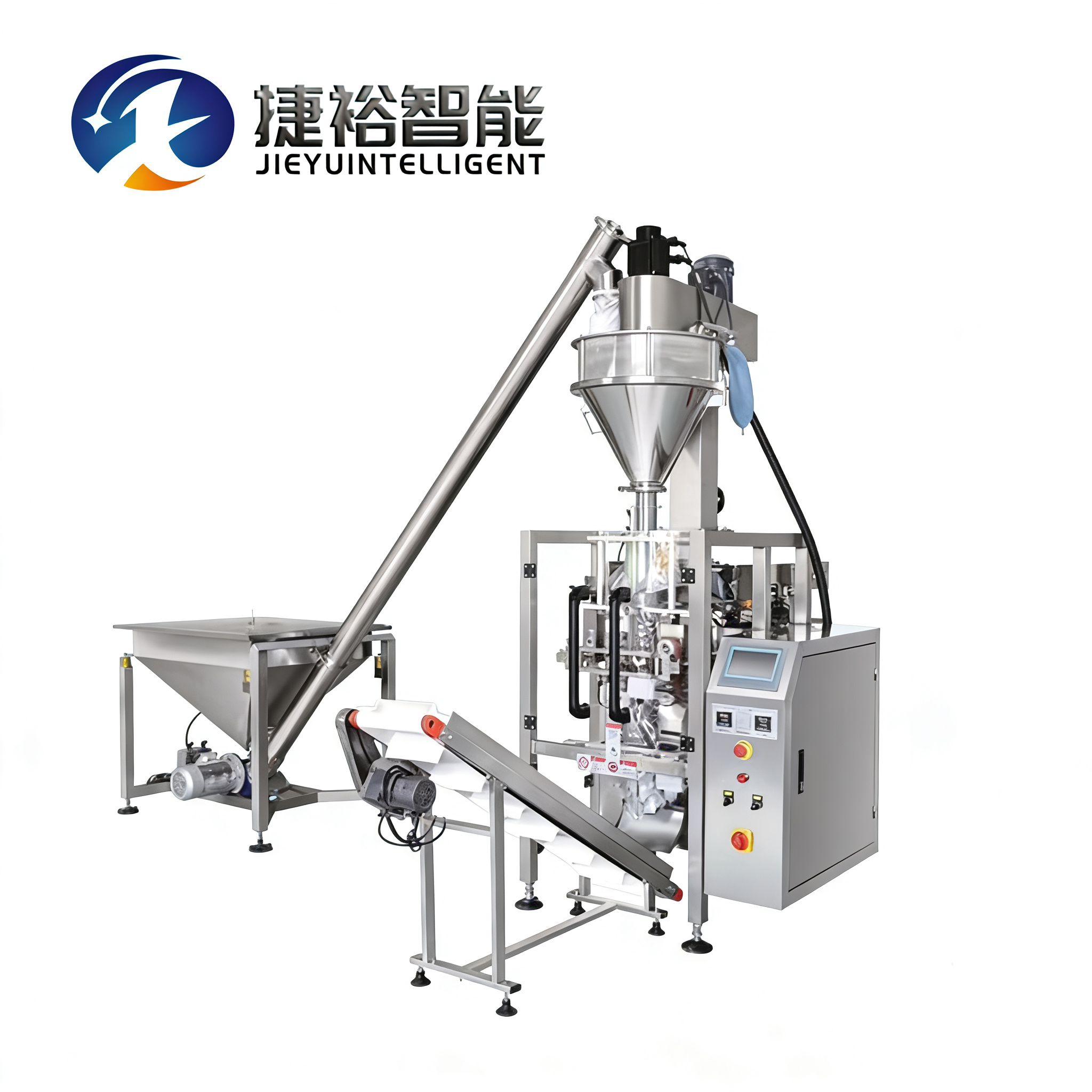

Feeding system:; measuring cup type, screw type, electronic scale, vibrating plate, sauce liquid pump, etc.





Technical parameter:

Model

JY-420/720

Packing speed

20-40 bags/minute (depending on the material)

Bag width

Bag width: 50-200mm/100-350mm
Bag length: 50-320mm/50-500mm

Package weight

50-5000g

Air consumption

≤0.35m³/min pneumatic DW

Voltage

380V

Total power

5kw



 Main configuration list:

Serial Number

Name

Model

Quantity

Manufacturer

1

PLC

CP1-M40DT-D

1set

OMRON(Japan)

2

Touch screen

TK6070i

1piece

Weilun (Taiwan)

3

Frequency converter

ATV312HV075N4

1piece

Schneider (France)

4

Rotary vane vacuum pump

KRX5-P-V-03

1unit

Hao Li Wang (Japan)

5

Hot stamping machine



1unit

Domestic

6

Main motor

CH32-750-30S

1unit

Shanghai Treasure (domestic)

7

Heating tube



2items

Customized (domestic)

8

Proximity switch



2pieces

OMRON(Japan)

9

Solenoid valve

SY5120-5DD-01

8pieces

SMC (Japan)

VQ21A1-5G-C8-F

2pieces

VP342R-5G-02A

2pieces

10

Cylinder

MG 32*40

2pieces

AirTAC (Taiwan)

MA 20*20-CA

1pieces

MA 16*20-CA

1pieces
