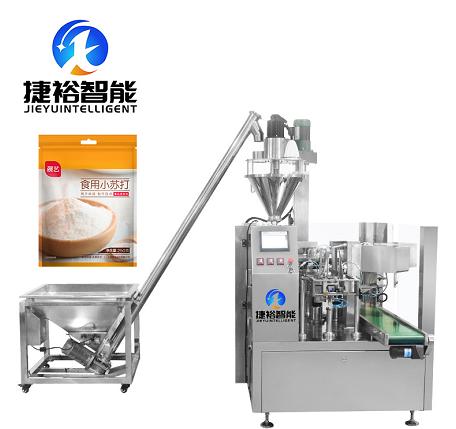

Granule bagging machine


Main features:
1. The complete machine comprises a horizontal bag-feeding packaging machine and a screw feeding system;
2. The bag slot is convenient and simple for placing bags, equipped with an automatic bag pressing device;
3. Equipped with an imported pressure sensing device, it achieves the effect of not sealing without feeding, saving packaging bags;
4. Equipped with a color touch screen display, it features simple operation and multifunctional design;
5. The machine adopts a stainless steel 304L appearance, with the carbon steel frame and some accessories being processed with acid and salt resistant corrosion-resistant coating.
6. Material selection requirements: Most of the accessories are molded through mold production, with the main materials being 304 stainless steel and aluminum oxide.
7. Various coding, marking, exhaust, and punching systems are available as options;

Main features:
1. The complete machine comprises a horizontal bag-feeding packaging machine and a screw feeding system;
2. The bag slot is convenient and simple for placing bags, equipped with an automatic bag pressing device;
3. Equipped with an imported pressure sensing device, it achieves the effect of not sealing without feeding, saving packaging bags;
4. Equipped with a color touch screen display, it features simple operation and multifunctional design;
5. The machine adopts a stainless steel 304L appearance, with the carbon steel frame and some accessories being processed with acid and salt resistant corrosion-resistant coating.
6. Material selection requirements: Most of the accessories are molded through mold production, with the main materials being 304 stainless steel and aluminum oxide.
7. Various coding, marking, exhaust, and punching systems are available as options;



Product Details

Scope of application:

01 Solid foods: candies, peanuts, green beans, pistachios, puffed foods, etc.

02 Granular items: beans, crystalline monosodium glutamate, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed, etc.



Main technical parameters:

Packaging speed

30-90bags/min

Total power

5KW

Package dimensions

90-140mm*100-250mm(Bag width * Bag length)

Power supply

380V

Total weight

2000KG

Package Capacity

10g-400g(Depending on the specific gravity of the material)

Air consumption

0.7m3/min

Type of packaging bag

Various prefabricated bags such as stand-up pouches, four-side sealed bags, zipper bags, tote bags, and paper bags

Size

Length: 2720mm, Width: 1100mm, Height: 1700mm

Scope of application:

01 Solid foods: candies, peanuts, green beans, pistachios, puffed foods, etc.

02 Granular items: beans, crystalline monosodium glutamate, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed, etc.



Main technical parameters:

Packaging speed

30-90bags/min

Total power

5KW

Package dimensions

90-140mm*100-250mm(Bag width * Bag length)

Power supply

380V

Total weight

2000KG

Package Capacity

10g-400g(Depending on the specific gravity of the material)

Air consumption

0.7m3/min

Type of packaging bag

Various prefabricated bags such as stand-up pouches, four-side sealed bags, zipper bags, tote bags, and paper bags

Size

Length: 2720mm, Width: 1100mm, Height: 1700mm
